Hydraulic Sheet Plate Metal Machine Description

1. Frame part 2. Stroke adjustment mechanism 3. Slider mechanism 4. Synchronization mechanism 5. Back gauge mechanism 6. Upper and lower mold centering device 7. Hydraulic system 8. Electrical system

The hydraulic bending machine includes a bracket, a workbench and a clamping plate. The workbench is placed on the bracket. The workbench is composed of a base and a pressure plate. The base is connected to the clamping plate through a hinge. The base is composed of a seat shell, a coil and a cover plate. The coil Placed in the recess of the seat shell, the top of the recess is covered with a cover plate

Product Specofication

Numerical order	Name		Value	Unit
1	Rated force		1600	KN
2	Platform Length		3200	mm
3	The strength of folded sheet material		450	N/mm2
4	Laryngeal opening depth		400	mm
5	slider travel		200	mm
6	The maximum opening height between the workbench surface and the slider		475	mm
7	slider travel speed	No load	60	mm/s
		Work	5
		Return	50
8	Main motor	model	Y32L-4 B35
		Power	11		KW
		Revolutions	1450		rpm
9	gear pumps	model	NT2-G20F
		Traffic	20		L/min
		pressure	32		MPa
10	Maximum working pressure of hydraulic system		25		MPa
11	Overall dimensions	Length	3550		mm
		Width	1740		mm
		Height	2450		mm

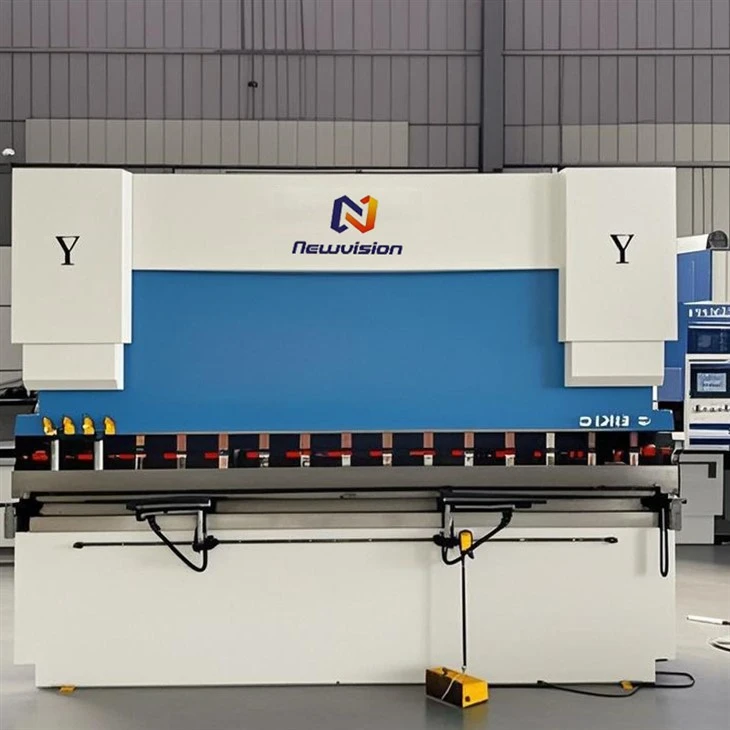

Product Show

product-800-800

Product maintain

Before performing machine tool maintenance or cleaning, the upper mold should be aligned with the lower mold and then put down and shut down until the work is completed. If startup or other operations are required, the mode should be selected in manual and ensure safety. Its maintenance content is as follows:
1. Hydraulic oil circuit
a. Check the oil level of the fuel tank every week. If the hydraulic system is repaired, it should also be checked. If the oil level is lower than the oil window, hydraulic oil should be added;
b. The hydraulic oil used is ISO HM46 or MOBIL DTE25;
c. The oil of a new machine should be changed after 2,000 hours of operation, and every 4,000 to 6,000 hours of operation. The oil tank should be cleaned every time the oil is changed;
d. The system oil temperature should be between 35°C and 60°C, and shall not exceed 70°C. If it is too high, it will cause deterioration and damage of the oil quality and accessories.
2. Filter
a. Every time the oil is changed, the filter should be replaced or thoroughly cleaned;
b. If the machine tool has relevant alarms or other filter abnormalities such as unclean oil quality, it should be replaced;
c. The air filter on the fuel tank should be inspected and cleaned every 3 months, and it is best to replace it every year.
3. Hydraulic components
a. Clean hydraulic components (substrate, valves, motors, pumps, oil pipes, etc.) every month to prevent dirt from entering the system and do not use cleaning agents;
b. After using the new machine for one month, check whether the bends of each oil pipe are deformed. If there are any abnormalities, they should be replaced. After two months of use, the connections of all accessories should be tightened. The machine should be turned off when doing this work. The system should not be damaged. pressure

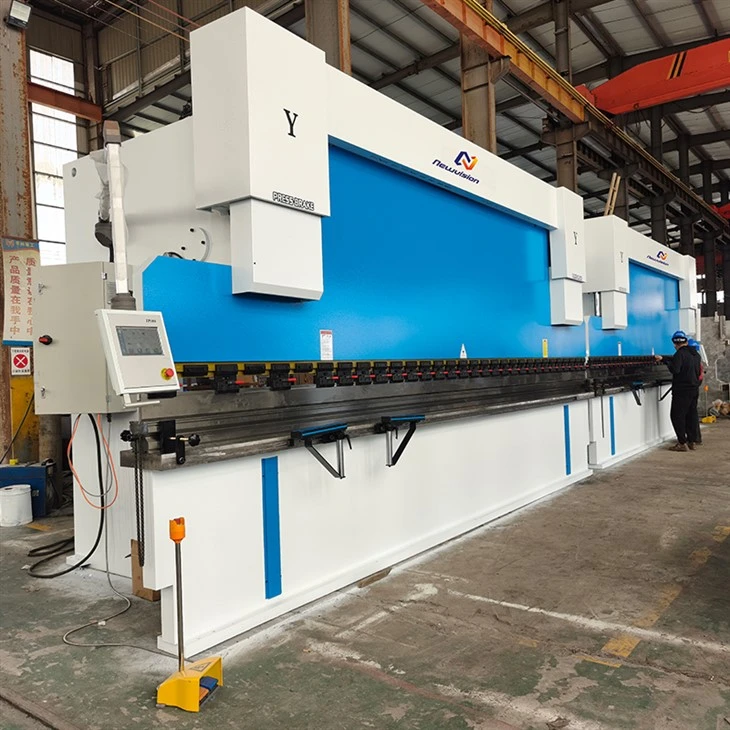

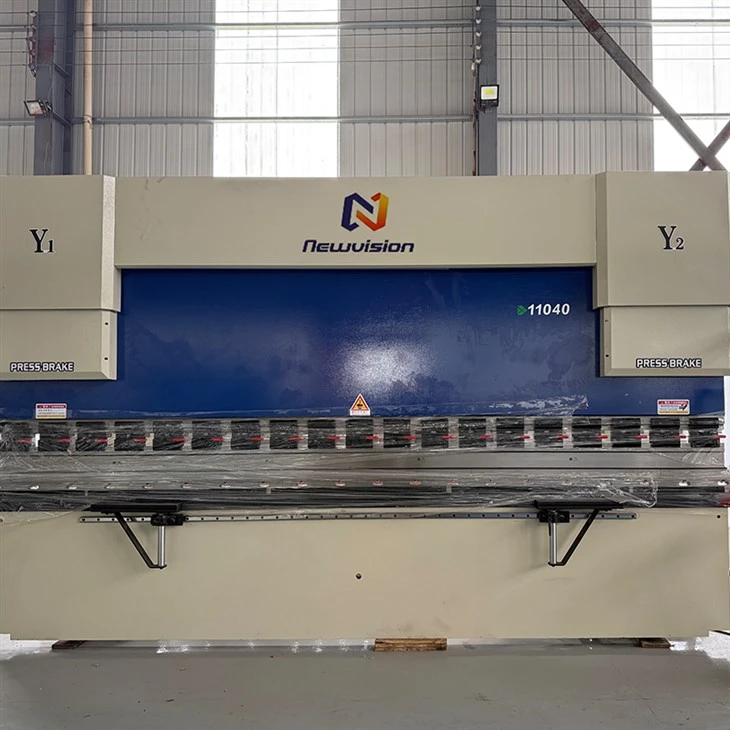

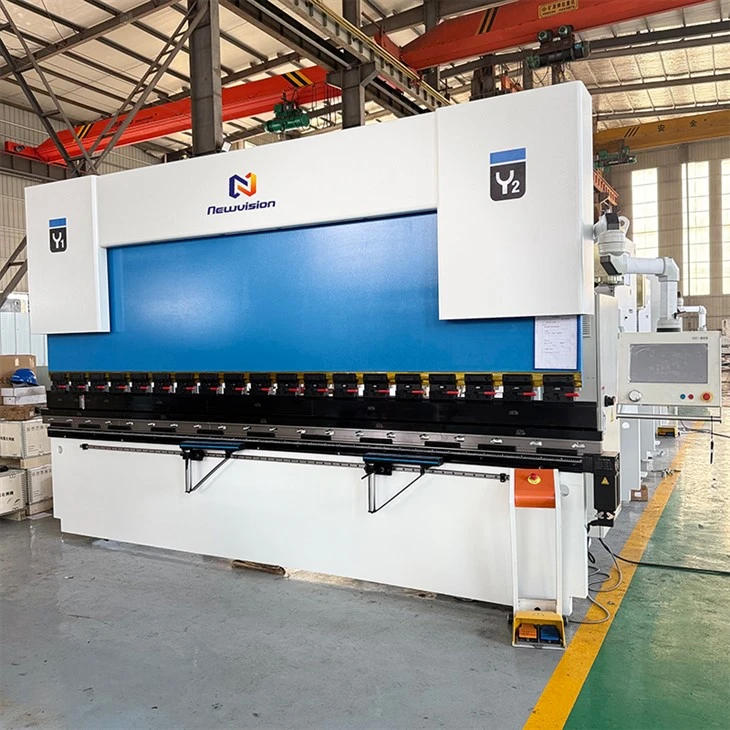

Product details

product-800-800 product-1600-334 product-707-528
