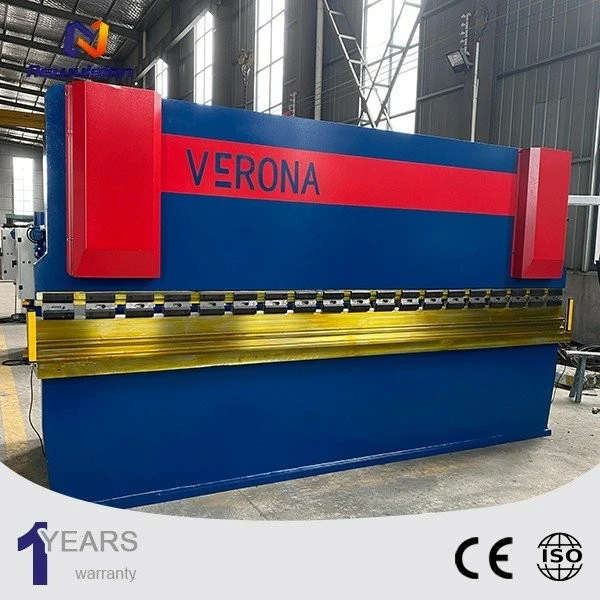

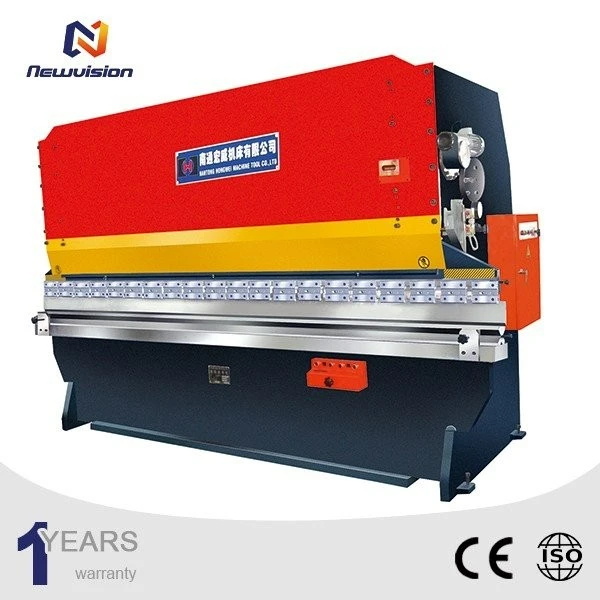

Precision Hydraulic Bending Machine

Hydraulic Press Brake

When in use, the coil is energized by the wire, and the energized force exerts a gravitational force on the pressure plate, thereby realizing the clamping of the thin plate between the pressure plate and the base. Due to the use of electromagnetic force clamping, the pressing plate can be made into a variety of workpiece requirements, and workpieces with side walls can be processed.

Product parameters

Product feature

(1) Hydraulic upper transmission. The oil cylinders at both ends of the machine tool are placed on the slide blocks to directly drive the sliding work.
(2) It adopts mechanical stop structure, which is stable and reliable.
(3) The slider stroke can be quickly adjusted mechanically, finely adjusted manually, and counter displayed.
(4) It adopts all-steel welded structure and has sufficient strength and rigidity.
(5) The slide synchronization mechanism adopts torsion axis forced synchronization.
(6) Inclined wedge-type deflection compensation mechanism to ensure higher bending accuracy.

Product details

Product Install

Lifting and installation of hydraulic sheet bending machine
1. The center of gravity of the hydraulic sheet metal bending machine is relatively high, and it is heavy at the front and light at the rear. Therefore, attention must be paid to the position of the center of gravity during lifting, transportation and installation to avoid accidents when the machine turns over. When lifting, the angle between the lifting wires should be as small as possible. , to ensure that the accuracy of the machine tool remains unchanged.
2. The left and right columns of the hydraulic sheet metal bending machine are at the benchmark for measuring the level of the work surface. Both vertical and horizontal directions should be less than or equal to 1000:0.2. Make a foundation in advance according to the foundation diagram, and install the hydraulic sheet metal bending machine on the foundation. At the same time, install the anchor bolts and finally grout. After the cement is completely solidified, tighten the bolts and check the level.
