Product Description

The small hydraulic baler is a baling equipment used to compress waste paper items and domestic waste, industrial waste, plastics, films, pasture, straw, cotton, iron filings, aluminum filings, scraps and other recycled fluffy waste products. It can exponentially reduce the volume of waste products, increase the density of items, and facilitate transportation and storage.

Detailed Images

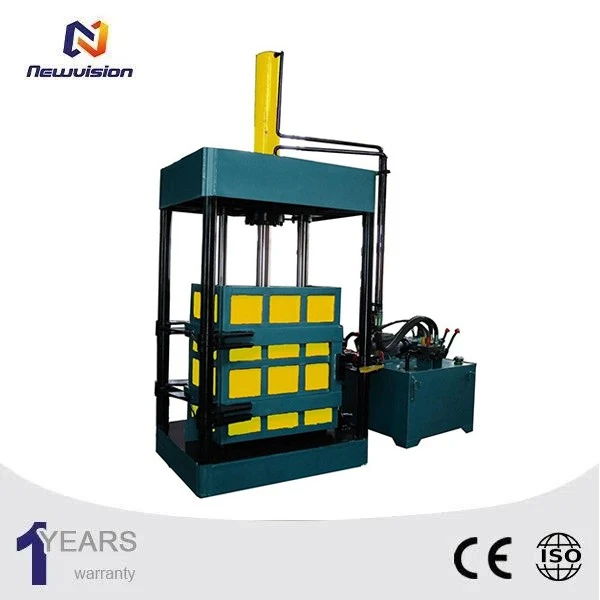

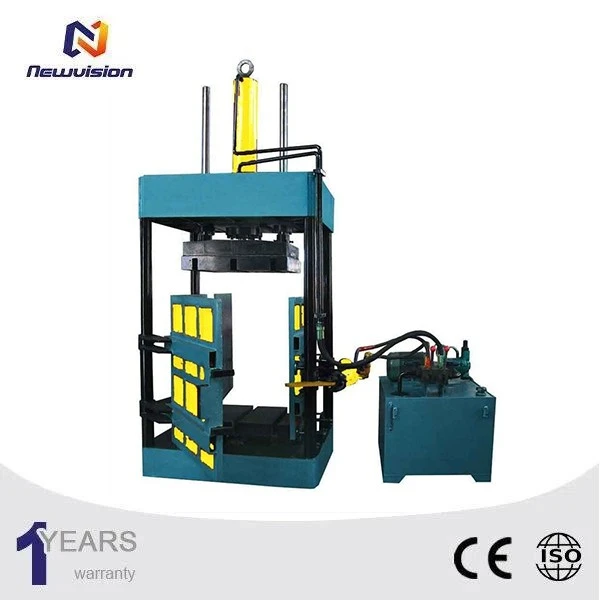

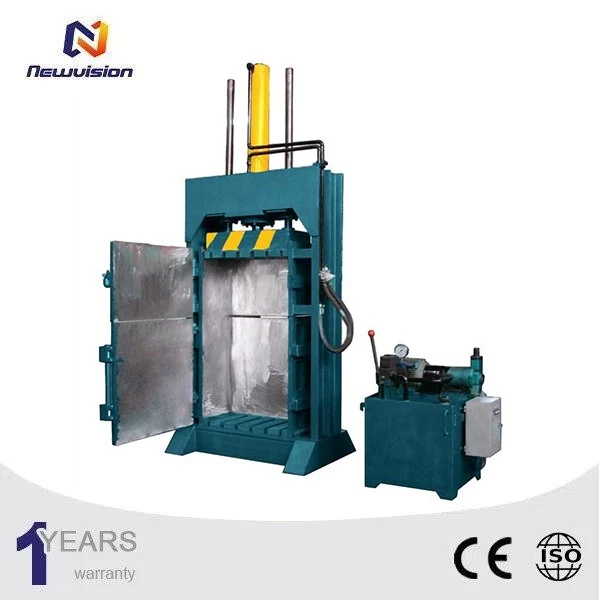

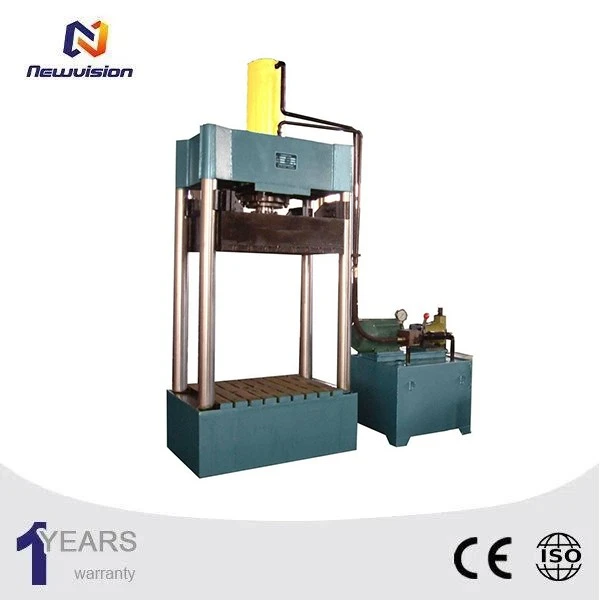

product-1-1

Things to note:
The key to the amount of oil injected: When the pressure plate moves downward normally, the pressure plate moves for the first time and the moving speed is uneven. Wait until the pressure plate moves to the bottom or suddenly stops during movement, or the noise increases during movement. In this case, you should first pull up the manual reversing valve handle to the middle position, turn off the stop switch or press the emergency stop switch to stop the motor. run. Then carefully check whether the fuel tank storage capacity is sufficient.

If the oil level is lower than half the height of the tank, it proves that the oil level is insufficient. At this time, appropriate hydraulic oil should be injected into the tank again. When the oil cylinder or (pressure plate) moves down for the first time, the hydraulic oil injected for the first time in the oil tank is completely sucked away to replenish it. The second injection of hydraulic oil is used as the cylinder or (pressure plate)Convection occurs when moving up and down. When the oil level in the fuel tank is lower than the oil suction port of the oil pump, all the oil pump sucks is air, causing the noise to increase or the pressure plate to suddenly stop during movement. Therefore, when the machine is new, first move the pressure plate to Move down to the lowest point, and after the oil cylinder absorbs the hydraulic oil in the tank, it is necessary to stop the motor and replenish the hydraulic oil again. If the oil amount is insufficient, the machine will not work or the oil pump will be damaged.

When the machine is not used for a long time, move the pressure plate to the top and press the stop button OFF or emergency stop button, and then disconnect the main power supply.

Operation display

product-1-1
