Product Description

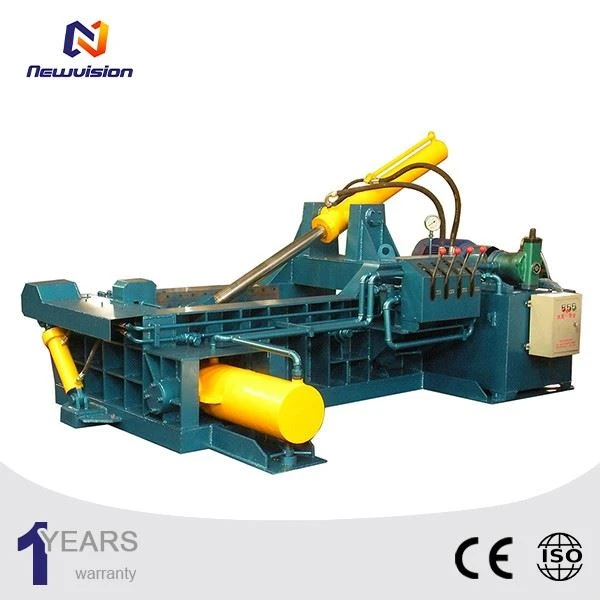

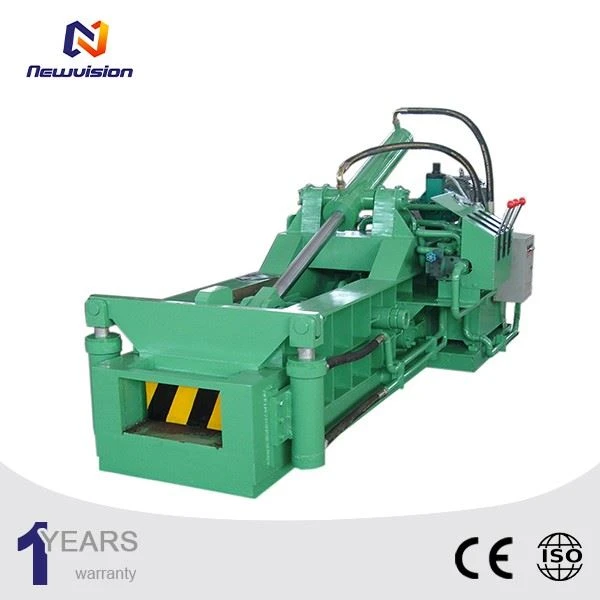

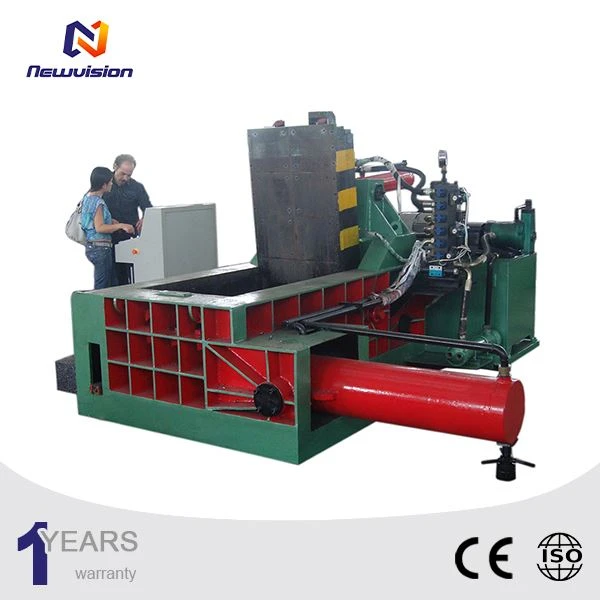

Provides a scrap metal hydraulic baling and shearing machine that integrates baling and shearing in one machine, has large compression chamber volume and opening area, stable operation, tight bundles, large shearing force, and can adjust the length of the bales at any time. The purpose of this utility model is achieved as follows: A scrap metal hydraulic baling and shearing machine, including a baler and a gantry shearing machine, the baler includes a body part, a primary side pressing part, a secondary side pressing part and a pusher material parts,

The fuselage part includes a base, a pushing oil cylinder support, a baler back seat and a side pressure oil cylinder support, the side pressure oil cylinder support is supported and connected to the bottom of the base, and the baler rear seat is upwardly connected to the base On the rear side, the pushing oil cylinder support is fixedly connected to the rear of the rear seat of the baler,

The primary side pressure component includes a primary side pressure plate and a primary side pressure oil cylinder, the secondary side pressure component includes a secondary side pressure plate and a secondary side pressure oil cylinder, and the primary side pressure plate and the secondary side pressure plate are respectively located on the base. The upper left side and the upper right side of the cylinder are hinged in the left and right bushings of the base with long shafts. The piston ends of the side pressure cylinder and the secondary side pressure cylinder are respectively rotatably connected with the lugs on the primary side pressure plate and the secondary side pressure plate,

The pushing part includes a pushing oil cylinder and a pushing head, the pushing oil cylinder is installed on the pushing oil cylinder support on the rear side of the back seat of the baler, and the pushing head is placed at the front of the back seat of the baler. , which is connected with the piston rod of the pushing cylinder,

The gantry shearing machine is arranged on the front side of the base, and includes a gantry frame, a material pressing chute, a shearing chute, a material pressing oil cylinder, a shearing oil cylinder, a material pressing head, a sliding shearing knife seat and a fixed knife seat. The pressing chute and the shearing chute are vertically fixed on the left and right inner sides of the gantry, and the pressing chute is placed on the rear side of the shearing chute, and the pressing oil cylinder and the shearing oil cylinder face downwards. It is fixedly connected to the top beam of the gantry, and the pressing oil cylinder is placed on the rear side of the shearing oil cylinder. It is placed in the pressing chute, the sliding shearing knife seat is fixedly connected to the piston rod of the shearing oil cylinder downward, and its left and right sides are placed in the shearing chute, and the fixed The knife seat is installed on the bottom plane of the gantry.

The base, the primary side pressure plate, the secondary side pressure plate, the pusher and the gantry shearing machine together form a material box (or compression chamber), which is the place where materials are added and compressed.
