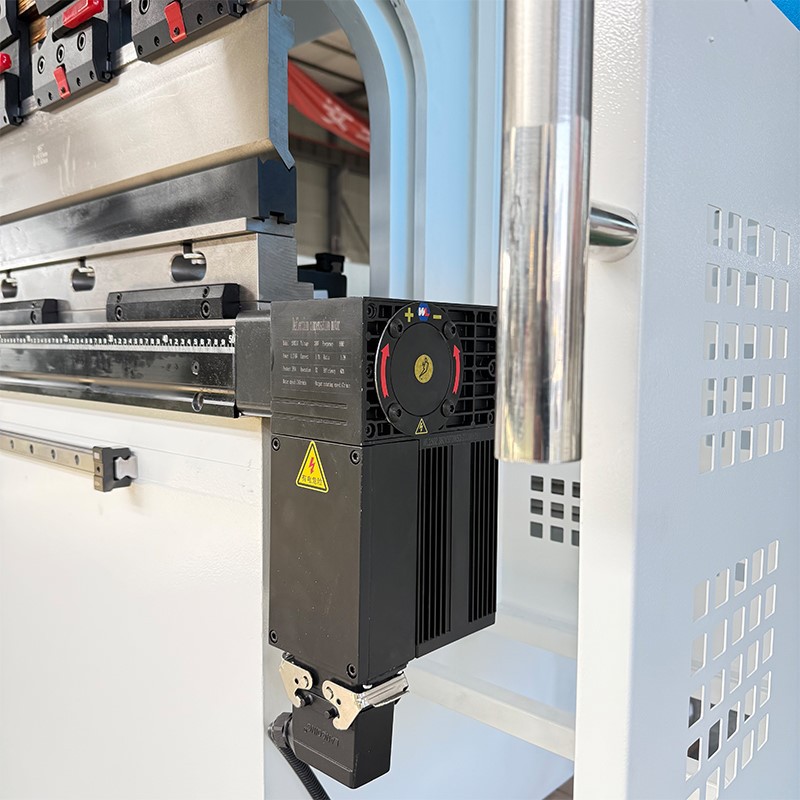

Vision WHM-160/3200 TP-10S utilizes a welded steel plate structure, providing superior strength and rigidity. A hydraulic transmission prevents serious overloading accidents caused by improper use. It operates smoothly, safely, reliably, and is easy to operate. The upper slide is a single-piece panel equipped with a deflection compensation mechanism, ensuring high bending accuracy. An external mechanical stop ensures convenient and quick operation and maintenance. Users can simply equip various dies to bend sheet metal into various shapes, and can also perform punching and shearing operations.
This machine is widely used for bending and forming sheet metal in the automotive, machinery, shipbuilding, electrical appliance, light industry, and decoration industries.

Product Models

Numerical order	Name		Value	Unit
1	Rated force		1600	KN
2	Platform Length		3200	mm
3	The strength of folded sheet material		450	N/mm2
4	Laryngeal opening depth		400	mm
5	slider travel		200	mm
6	The maximum opening height between the workbench surface and the slider		475	mm
7	slider travel speed	No load	60	mm/s
		Work	5
		Return	50
8	Main motor	model	Y32L-4 B35
		Power	11		KW
		Revolutions	1450		rpm
9	gear pumps	model	NT2-G20F
		Traffic	20		L/min
		pressure	32		MPa
10	Maximum working pressure of hydraulic system		25		MPa
11	Overall dimensions	Length	3550		mm
		Width	1740		mm
		Height	2450		mm
