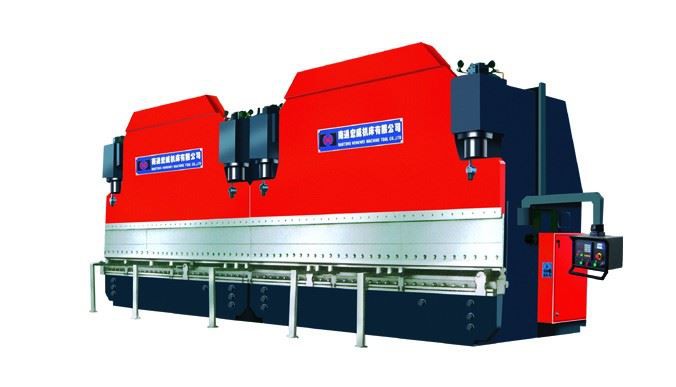

Precision Hydraulic Press Brake

Hydraulic Press Brake Basic Features:

1.All-steel welded seam construction and vibration-relieved stress

2.High mechanical strength, strong rigidity

3.The hydraulic pressure of the ram travels downwards, which is stable and reliable

4.Oblique trapping of the upper punch fixture;

5.Simple top knife clamping with fine-tuning slope block, easy to operate and high precision;

6.The two sliding bed front sheet stays are installed on the T-slots of the bed;

7.Solid single block with multiple V-modes on four sides;

8.Approved stable and reliable hydraulic system;

9.The control panel and foot switch are equipped with emergency stop buttons to ensure safety;

10.The metal protective cover of the whole machine ensures the safety of operators;

Quick Details

Slider Stroke (mm):120 mm

Automatic Level:Fully Automatic

Throat Depth (mm):320 mm

Machine Type:Torsion Bar

Length of Working Table (mm):2500 mm

Width of Working Table (mm):120 mm

Condition:New

Place of Origin:China

Material / Metal Processed:stainless steel, Carbon Steel, Aluminum

Automation:Automatic

Extra Services:Machining

Certification:ce

Year:2021

Weight (KG):6000

Motor Power (kw):7.5 kw

Key Selling Points:High-accuracy

Warranty:1 years

After-sales Service Provided:Field installation, commissioning and training, Field maintenance and repair service, Online support

After Warranty Service:Video technical support, Online support

Applicable Industries:Building Material Shops, Machinery Repair Shops, Construction works

Product Name:Steel Bender Press Brake Hydraulic Sheet metal bending Machine

Working Method:Hydraulic

Working Table:T shape working table, cnc working table is approval

Application:Bending Metal Plate

Color:Customer Choose

Nominal Pressure (kN):1000 kN
