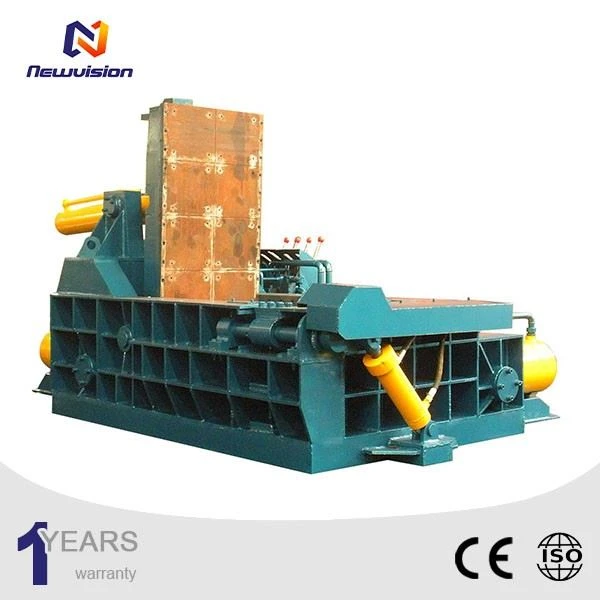

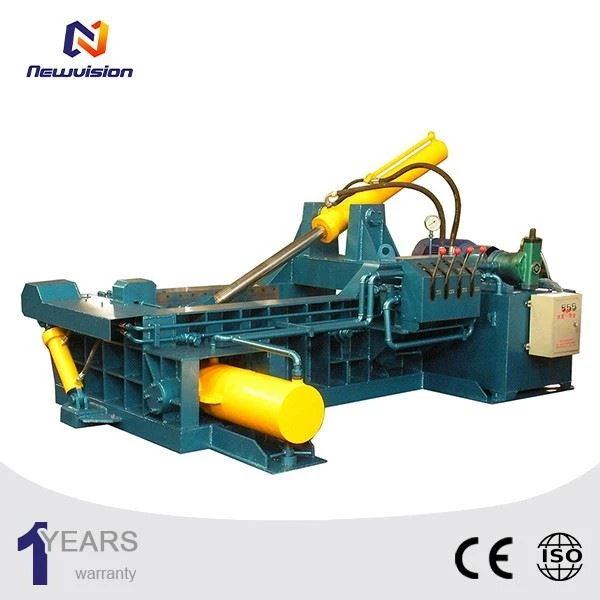

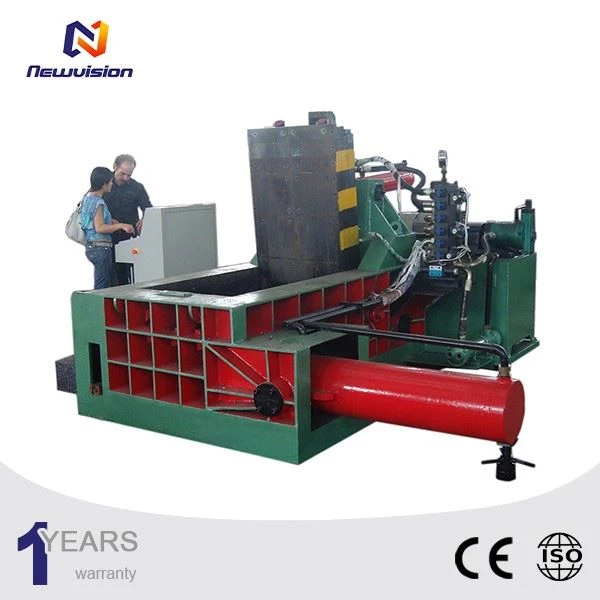

Small Scrap Metal Baler
Product Instruction
Hydraulic baler machine Small Scrap Metal Baler hydraulic baler machine hopper is supplied with: Lateral secured plexiglass door. Optionally, they are doubly secured by a double contact and a trapped key interlocking safety system for optimal security. Hydraulic baler machine with swivelling chute for manual feeding or hopper with fixed chute Tailor made baler hopper for automatic or manual feeding wear resistant and nearly maintenance free.
Product Parameters
|
Sr.no |
Type name |
Unit |
Model or data |
|||
|
Main cylinder |
Side cylinder |
Cover cylinder |
Turn our bale cylinder |
|||
|
1 |
Nominal pressure |
KN |
630 |
630 |
360 |
60 |
|
2 |
Inner diameter of main cylinder |
mm |
φ180 |
φ180 |
φ125 |
φ80 |
|
3 |
Piston diameter |
mm |
φ120 |
φ120 |
φ80 |
φ45 |
|
4 |
stroke |
mm |
450 |
850 |
1050 |
200 |
|
5 |
Max.pressure |
Mpa |
25 |
25 |
25 |
12 |
|
6 |
Bale density |
≥2.0 t/m3 （LIGHT AND THIN MATERIAL） |
||||
|
7 |
Electrical motor |
1pc |
11KW |
|||
|
8 |
pump |
1pc |
40YCY14-1B |
|||
|
9 |
Single cycle time |
s |
80（NO LOAD） |
|||
|
10 |
Material box size |
mm |
1000×600×500 |
|||
|
11 |
Bale size |
mm |
200*200 |
|||
|
12 |
weight |
ton |
About 4.5 |
|||
|
13 |
Bale |
|
Side turn over bale |
|||
|
14 |
Cool way |
|
3 cube water cooling systerm (optional) |
|||
|
15 |
Operated by |
|
Manual |
|||
|
16 |
efficiency |
kg/h |
500-750 |
|||
|
17 |
Machine size |
mm |
Body： 3000×1800×1600（mm） Oil box ： 1000×700×1400 ( mm) |
|||
Applications of Hydraulic Baling Machine
Hydraulic baling machine has a wide range of applications in various industries and sectors, such as:
1. Waste management: Hydraulic baling machine is used for compressing and packaging waste paper, cardboard, plastic bottles, metal scraps, etc., facilitating their transportation and storage.
2. Recycling: Hydraulic baling machine is used for compressing and packaging recyclable materials, such as waste paper, cardboard, plastic bottles, metal scraps, cotton, wool, straw, etc., promoting their reuse and recycling.
3. Agriculture: Hydraulic baling machine is used for compressing hay, straw, cotton, etc., facilitating their transportation and storage.
4. Textile: Hydraulic baling machine is used for compressing textile waste, such as cotton waste, wool waste, etc., for recycling and reuse.
5. Food industry: Hydraulic baling machine is used for packaging food products, such as fruits, vegetables, sugar cane, etc., for transportation and storage.
We provide OEM/ODM service.In addition, we promise your design would protect by law, we won't tell anyone else about this. It's your own copyright.
We will send you our offer in 24 hours. If ok, please send us your purchase order, or you can ask us to send you a proforma invoice for your order.
Welcome to contact us and hope to establish a cooperative relationship with you!
