Hydraulic Scrap Baler

Product Instruction

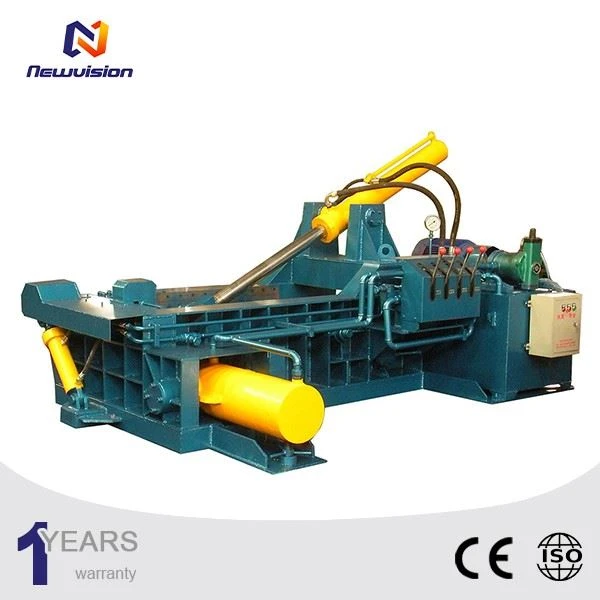

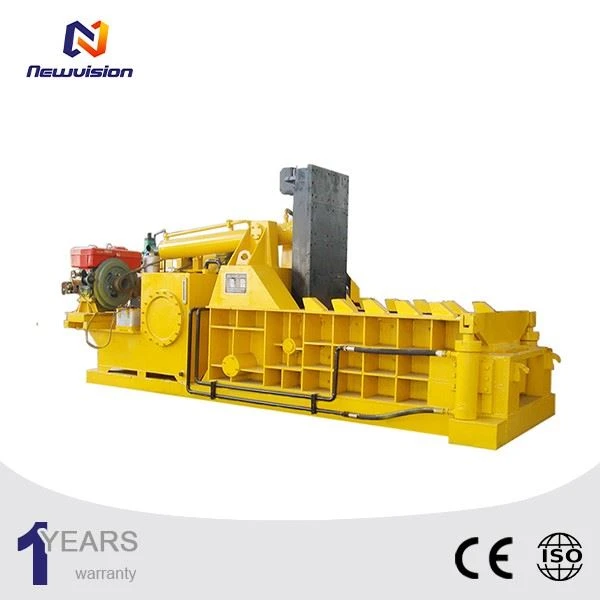

Hydraulic Scrap Baler  is an inevitable by-product of human activities, and managing it effectively has become a major .The feeding port is large and low to the air, which is especially convenient for thin materials.Has automatic package delivery function.Simple operation.The body is not heavy and easy to move.

Hydraulic Scrap Baler has a wide range of applications. It mainly packs scrap aluminum, cans, scrap stainless steel, white steel, thin iron materials and other materials. It is simple and convenient to operate. The front door hydraulic lift door is more sturdy and durable. Double oil cylinders push the package out. Block efficiency is high. The internal dimensions of the material box are 1.1*1.8*1.7 meters, and the total pressure of the two cylinders is about 250 tons. The package is suitable for loading onto the truck.Hydraulic Scrap Baler is easy to fill, saves a lot of filling time, and has high pressure. It packs about 1.5 tons of scrap aluminum profiles. It has a hydraulic lifting door at the front door, hydraulic push bales out of blocks, and a forklift can directly insert and remove the pallet, which is convenient and fast.

Product Parameters

1. Internal specifications of the compression chamber material box: 800*1200*400 mm.
2. Block molding specifications: octagonal block, octagonal shape. The diagonal angle is 200-250 mm, and the length is about 400-500 mm.
3. Push-back cylinder pressure: 1300KN, pressure 100-130 tons.
4. Main thrust cylinder pressure: 1300KN, pressure 130 tons.
5. Capping cylinder pressure: 500KN, 50 tons.
6. Motor power: 15-18.5 kilowatt copper wire motor.
7. Oil pump model: 80-100YCY high-pressure plunger pump.
8. Length of briquetting time: It takes about 90-120 seconds from filling the material and starting briquetting to finally turning the bag out of the bag.
9. All the manganese steel wear-resistant plates in the material box are welded to ensure that the inside of the material box is wear-resistant and durable.
10. There are shearing blades on the left and right sides of the material box, which facilitates shearing of materials and makes filling more convenient.
11. Package discharging method: Using front-turning package discharging method, the package can be turned out from the box regardless of the length of the package.
12. The dead weight of the whole machine: about 4-4.5 tons.

About Us

Sino Machinery Company specializes in the production of 160 tons, 180 tons, 200 tons, 250 tons, 300 tons scrap aluminum balers, white steel balers, stainless steel balers, vertical scrap aluminum balers, vertical light material balers, etc., scrap The aluminum stainless steel baling machine is mainly suitable for baling and briquetting of waste stainless steel, scrap aluminum alloy, iron sheets, color steel tiles, paint buckets, flower boxes, cans and other light and loose materials. It is also suitable for baling waste paper, paper shells, Waste plastics, one machine has multiple uses, and the packaging speed is fast, which greatly improves labor efficiency, reduces labor intensity, saves manpower, and reduces transportation costs.
