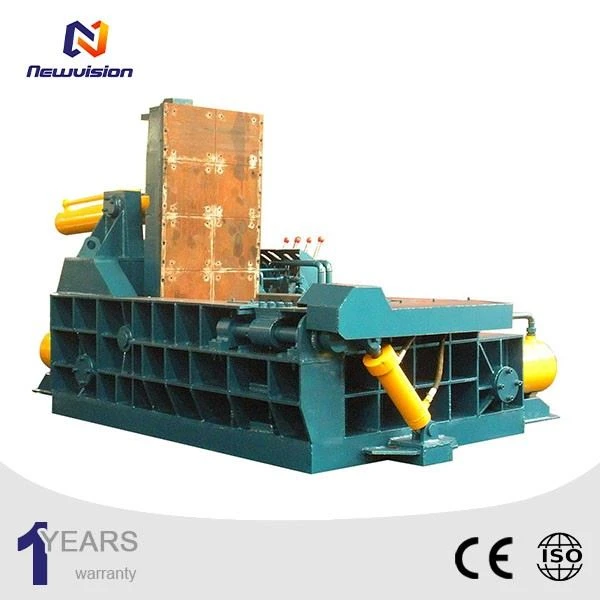

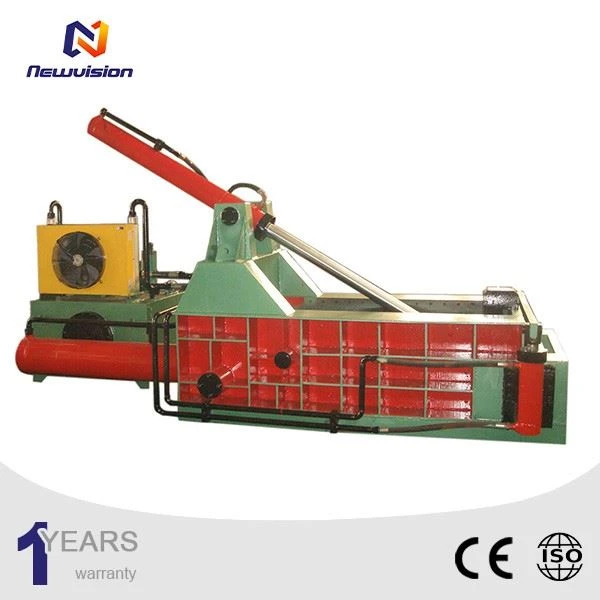

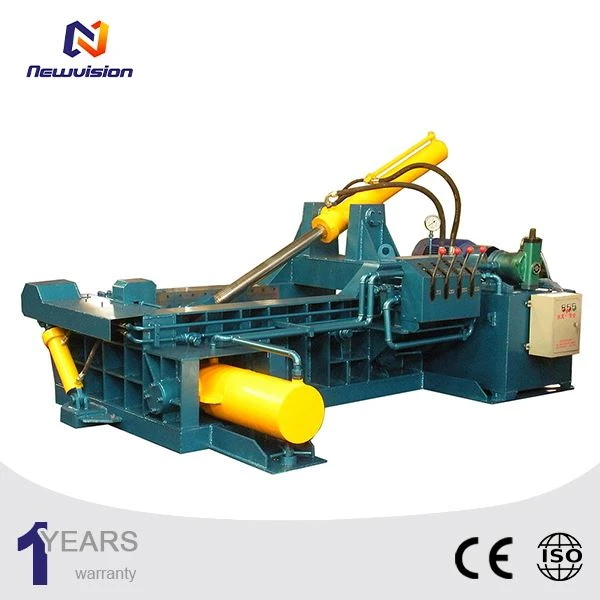

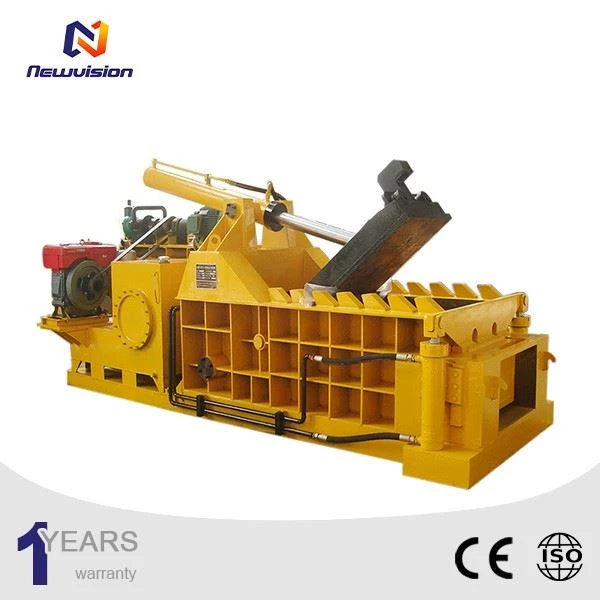

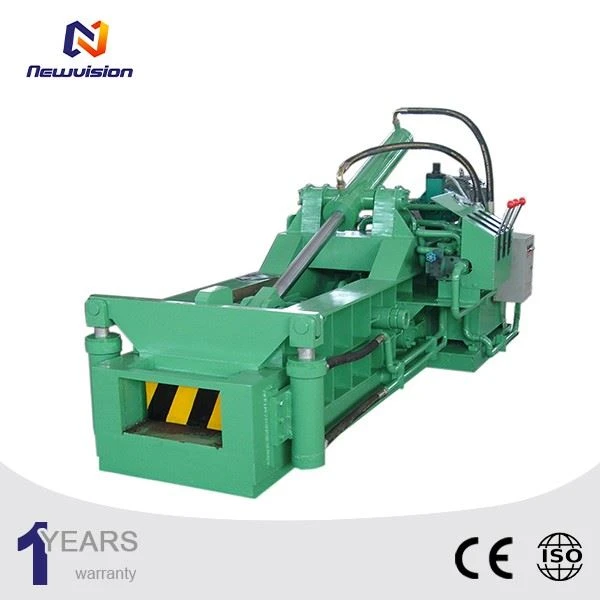

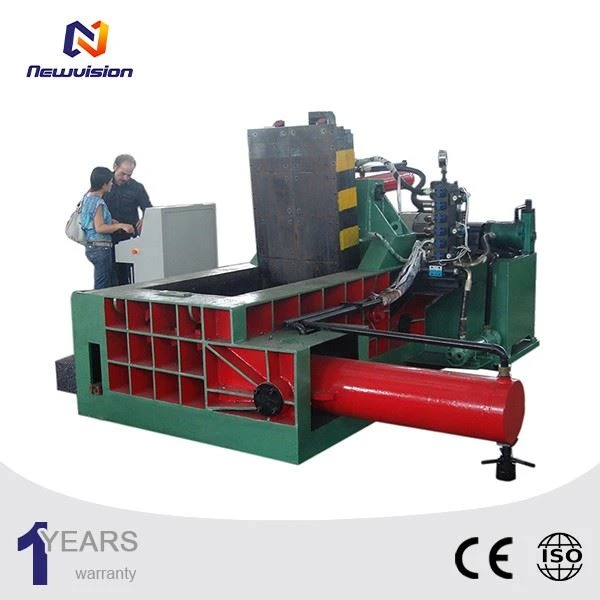

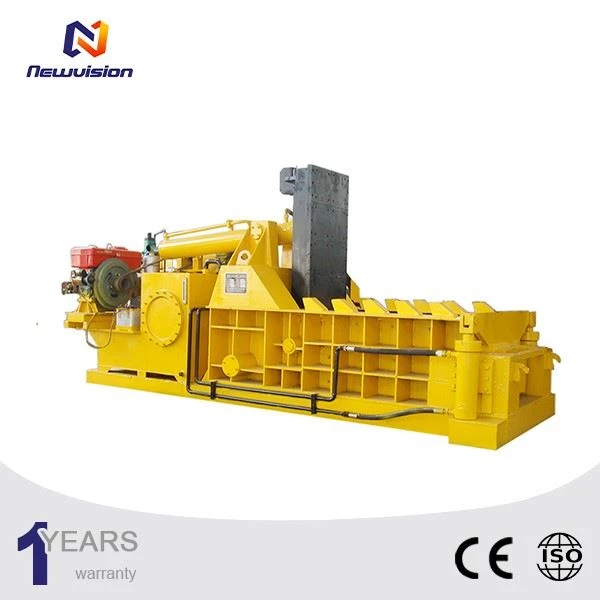

Aluminum Press Machine
Production Instruction
Hydraulic metal baler is suitable for the steel plants, recycling companies, ferrous & non-ferrous metal smelting industry to compress metal scrap(steel parings, waste steel, waste copper & aluminum, waste stainless steel, scrap from discarded automobiles) into acceptable furnace charges of cuboids, cylinders, octagons & other shapes, so hydraulic baler machine as to reduce the cost of transportation & smelting, to speed up furnace charging.
Horizontal baler, also known as horizontal baling machine, is a mechanical device used to compress and pack a wide range of materials into compact and manageable bales. It is widely used in industries that produce large quantities of recyclable waste materials such as paper, cardboard, plastics, and textiles.
Product parameters
|
Sr.no |
Type name |
unit |
Model or data |
||
|
Main cylinder |
Side cylinder |
Bale cylinder |
|||
|
1 |
Nominal pressure |
KN |
1372 |
357.8 |
285.1 |
|
2 |
Inner diameter of main cylinder |
mm |
φ250 |
φ160 |
φ110×2pcs |
|
3 |
Piston diameter |
mm |
φ180 |
φ105 |
φ70 |
|
4 |
stroke |
mm |
1700 |
1360 |
260 |
|
5 |
Max.pressure |
Mpa |
25 |
25 |
15 |
|
6 |
Bale density |
≥2.0 t/m3 （LIGHT AND THIN MATERIAL） |
|||
|
7 |
Electrical motor |
1pc |
18.5KW |
||
|
8 |
pump |
1pc |
80YCY14-1B |
||
|
9 |
Single cycle time |
s |
60（NO LOAD） |
||
|
10 |
Material box size |
mm |
1400×600×600 |
||
|
11 |
Bale size |
mm |
250×250×600 |
||
|
12 |
weight |
Kg |
ABOUT 7000 |
||
|
13 |
Bale |
|
FRONT BALE |
||
|
14 |
Operated by |
|
MANUAL FAST SPEED、INTERGRATION VALVE |
||
|
15 |
efficiency |
T |
1.75-2T/H |
||
|
16 |
Machine size |
mm |
4150×1450×1900（mm）
|
||
Finally, horizontal packers are environmentally friendly. They use minimal packaging materials, reducing waste and cutting down on environmental pollution. This not only benefits the planet but also helps businesses save on packaging costs.
Horizontal packers are also highly versatile. They can be used to package a wide range of products, from small items like candy bars to large items like furniture. With adjustable settings, businesses can customize the machines to meet their specific needs, making them highly desirable for businesses of all sizes
