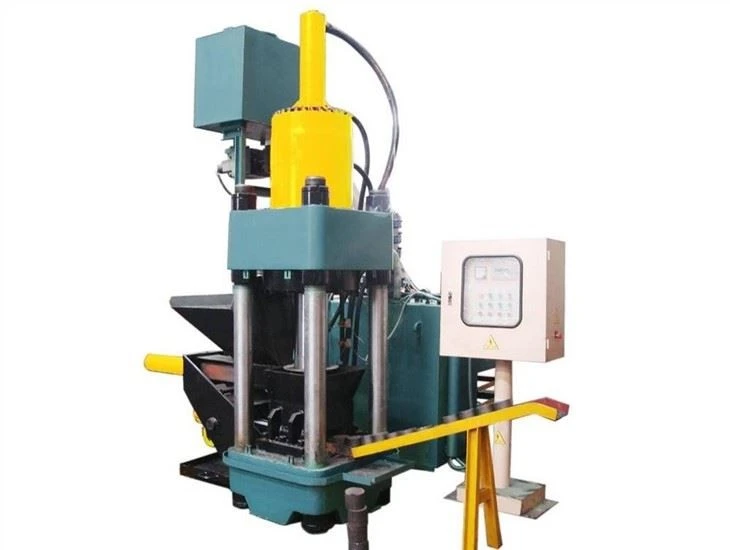

Swarf Briquetting Press
Briquette size: 60x150x80
Density: 2.2 – 2.3 kg/dm3
Weight: 0.8 – 1.4 kg
Easy integration into automated systems or operation as a stand-alone machine.
Fully automatic operation, no operator required.
Send Inquiry
Chat Now
Product Introduction
Product Description：
Our Swarf Briquetting Press make swarf handling easy. They also significantly reduce the space you need for storing swarf boxes. There are clear advantages in using aluminum briquettes. Their high density makes them suitable for direct charging into standard reverb furnaces.
What's more, metal recovery during remelting is similar to that for ingots. Metal loss is as low as 1%.
You benefit from briquetting swarf directly after sawing because that prevents severe oxidation losses. Mixing the swarf with emulsions gives you another plus: you can make briquettes with a moisture content of less than 2%
- Throughput: 300 – 400 kg/h
- Briquette size: 60x150x80
- Density: 2.2 – 2.3 kg/dm3
- Weight: 0.8 – 1.4 kg
- Easy integration into automated systems or operation as a stand-alone machine.
- Fully automatic operation, no operator required.
- Automatic switch to standby mode, automatic restart when swarf enters the hopper.
- Quick bolt-down and plug-in installation
- Compact design, little floor space required
- Low maintenance costs
SBJ 1500C hydraulic briquetting press feeding video:
This metal briquetting press can coldly compress powder and grain shaped cast steel chips, steel chips, sponge iron, copper chips and aluminum chips into column-shaped lump with a density of >5T/M3, PLC control with automatic material feeding, lump discharging and high efficiency. (containing no bonding reagents).
- The compressed lumps can substitute raw materials and be used directly.
- This type of machine is suitable for customers that handle moderate iron chip amount
- The output of each shift is 16 to 20ton.
- The model is fit for big amount ferrous chip. It gains three patents in the country and our main customers are in Asia area.
- This kind of machine is produced in China professionally
Characteristics:
1. Our machine is driven by hydraulic pressure, which can reduce noise and is safer.
2. The frame structure is designed to be vertical, thus reducing the floor space.
3. Both feeding and discharging are fully automatic PLC controlled, which is efficient, convenient and labor-saving
Product Description:
The ECOHYDRAULlC series of hydraulic briquetting presses are industrial machines designed to press metal chips into briquettes and operate in automatic mode.
Press Material: Cast iron, aluminum, copper, steel, brass, zinc, bronze,titanium and magnesium, they are also suitable for treating a variety of other machining scraps.
Steel chips
Steel Briquettes
Aluminum Chips
Aluminum Briquettes
Copper Chips
Copper Briquettes
Advantages for SBJ-500 Briquetting press machine:
1. The compression chamber inside the machine generates high pressure, and the metal scraps become high-density lumps under high pressure.
2. Not only does it significantly reduce the volume of machining chips, it can also remove cutting fluid and produce lumps.
3. In general, the density of the pressed lumps is sufficient to be directly put into the furnace for melting.
4. The companies that generate waste, the companies that recycle metal scraps, and the foundries that process waste can greatly improve economic benefits by processing and reusing the waste.
Specifications For 500 Ton Briquetting Press Machine
|
Power System |
Main Motor Power |
KW |
37 |
|
Voltagle |
200-680V/3phase/3ph,50/60Hz(Customized) |
||
|
Main performance |
Maximum Pressure |
Tons |
500 |
|
Briquettes Diameter |
mm |
Φ90~120 |
|
|
Briquette Length |
mm |
50~110 |
|
|
Production Capacity |
Kg/h |
170~1720 |
|
|
Machine Weight |
Kg |
10000 |
|
|
Operation |
PLC control with Automatic operation |
||
|
0ptional |
1.Conveyor1.Conveyor |
||
|
Model |
Inner diameter of main cylinder(mm) |
Size of briguctte(mm) |
(T/M3)Density |
(Kg) |
Capacity(block/min) |
(t/n) |
(Kw) |
Remark |
|
SBJ-1500A |
Φ250 |
Φ80x(60-80) |
≥5 |
2-2.5 |
3 |
0.25-0.3 |
15 |
Manual |
|
SBJ-1500C |
Φ250 |
Φ80x(60-80) |
≥5 |
2-2.5 |
3 |
0.25-0.3 |
15 |
PLC automatic |
|
SBJ-2000A |
Φ280 |
Φ80x(60-80) |
≥5 |
2.5-3 |
4 |
0.4-0.6 |
15 |
Manual |
|
SBJ-2000B |
Φ280 |
Φ80x(60-80) |
≥5 |
2.5-3 |
5 |
0.5-0.75 |
15 |
Manual |
|
SBJ-2000C |
Φ280 |
Φ80x(60-80) |
≥5 |
2.5-3 |
6 |
0.5-0.8 |
15 |
PLC automatic |
|
SBJ-2500B |
Φ320 |
Φ80-90x(60-80) |
≥5.2 |
2.5-3.5 |
5 |
0.6-0.8 |
18.5 |
Manual |
|
SBJ-2500C |
Φ320 |
Φ80-90x(70-90) |
≥5.2 |
2.5-3.5 |
5 |
0.6-0.8 |
18.5 |
PLC automatic |
Company Team:
Our company has a highly qualified team of professionals with challenges and opportunities of the new certury. We always adhere to continuous innovation and the pursuit of excellence in developing our products.
Customer Visit:
Indonesia's biggest exhibition for machinery and equipments.Vietnam's biggest exhibition for machinery and equipments and so on.
Our Certification: Our factory was awarded the quality control approval certificate lSO 9001 from material test, process inspection tofinal test complete quality control system is already in place.
