Product description

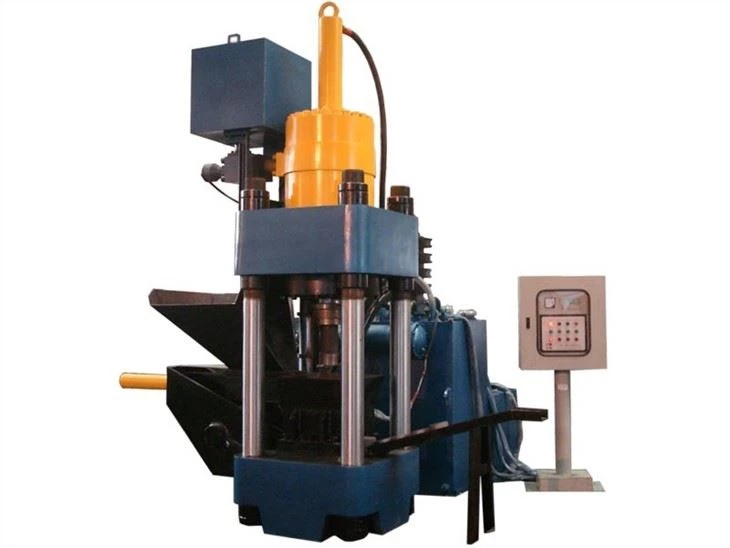

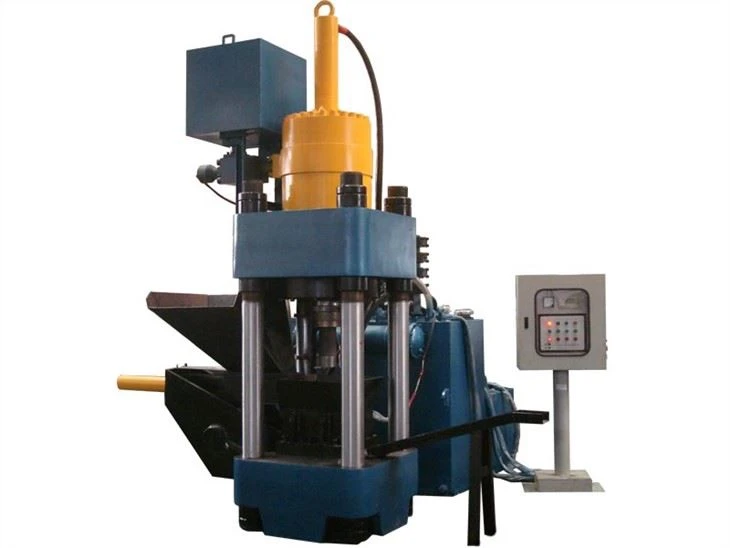

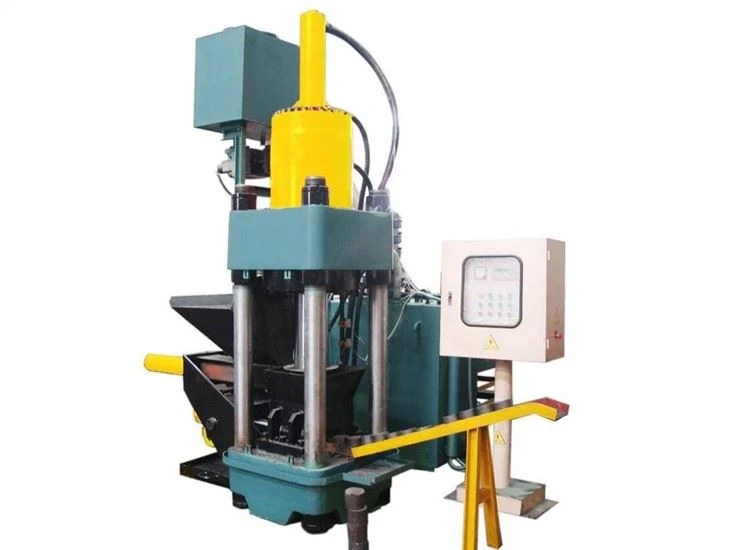

The metal briquetting machine is also called the metal chip cake hydraulic press. It is mainly used to cold-press powdered or granular copper chips, aluminum chips, cast iron chips, ductile cast iron chips, sponge iron, steel chips, iron ore powder, silicon powder, slag powder and other non-ferrous metal chips into cylindrical cakes weighing 2.5~10kg. It does not require any additives. The large-scale fully automatic chip cake machine is suitable for enterprises with large amounts of metal chips, large foundries, wind power component casting companies, and copper and aluminum product manufacturers.

Product show

3_01

3_02

3_03

3_04

3_05

Main Features

1) Hydraulic drive,operation stable,no vibration,safe & reliable.

2) Pressing force ranges from 180 to 630 tons.

3) PLC control adopted;user can choose semi or fully automatic operation.

4) Customized chamber and block size as per different scrap material.

5) High density reaches 5.5T/M3.

3_06

3_07

3_08

3_09

Performance characteristics

Hydraulic speed-increasing system
The first hydraulic speed-increasing system with customized speed-increasing integrated valve block can more than double the speed. There are many imitators, but we are the best.
Optional cooling system
We recommend a suitable cooling system according to the working environment of the machine, air cooling or water cooling, so that the machine will not stop working.
High density of cake
The higher the density, the greater than 5.5t/cubic meter can be pressed, and the cake will not break when it falls.
Customized accessories
Whether it is a valve body or an oil pump, we insist on giving timely feedback to long-term suppliers. Improve the design and quality of accessories.

3_10
