Product Instruction

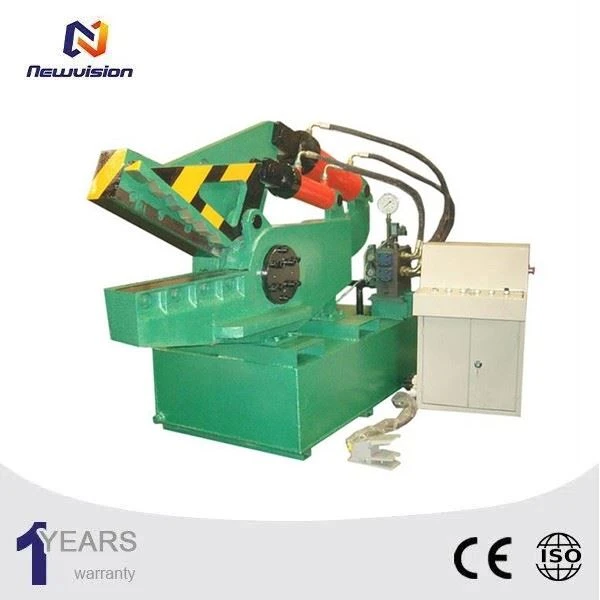

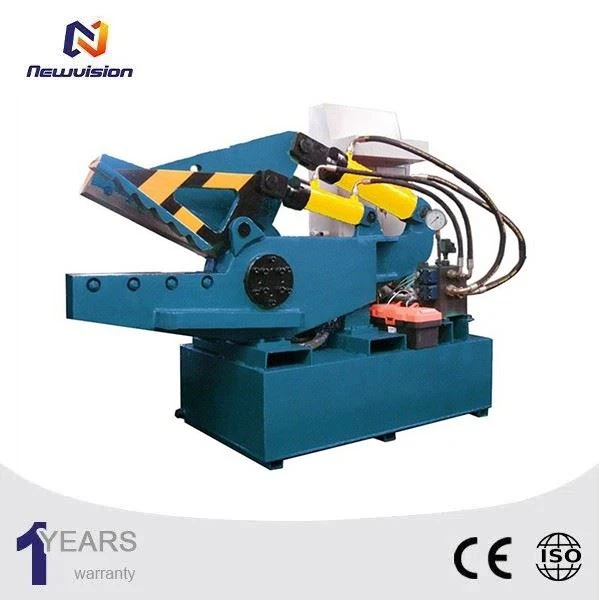

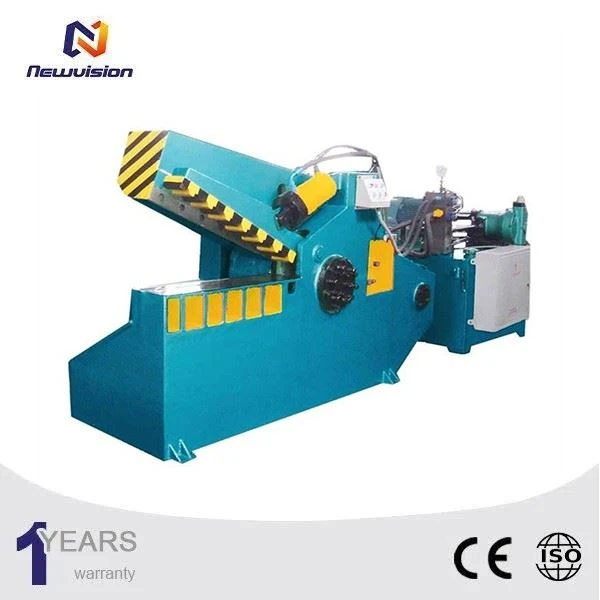

The major strong points of the Alligator Cutting Machine are balanced and steady transmission, stable running speed against load change.Controlled by buttons, the machine is able to accomplish the automatic cutting and manual feeding.

Metal shears are divided into different models such as type 160, type 180, type 200, and type 250. They are suitable for cutting scrap steel, I-beam, channel steel, scrap iron and other materials. The cutting force ranges from 65 tons to 250 tons. All are automated, the output ratio is high, and labor costs are saved.

Scope of application of type 160 metal shearing machine:
It is suitable for metal recycling companies in scrap recycling stations, scrap steel plants, and smelting and casting enterprises to cold shear various shapes of steel and various metal structures to cut out qualified furnace materials. It is especially suitable for cutting bicycle frames, motorcycle frames, angle steel, channel steel, I-beams, steel pipes, etc. It can cut solid round steel with a maximum diameter of 60-80 mm.

4_01

Product Details

4_02 4_03 4_04 4_05

4_06

Product specification

160 type metal shearing machine specifications:
1. The blade length is 1 meter.
2. Shearing force: 630KN.
3. Operation mode: fully automatic operation, manual operation, convenient and simple.
4. Motor configuration: 15kW copper wire motor.

4_07 4_08 4_09

Main advantages and features
(1) Hydraulically driven, easy to operate and simple to maintain. It has a wide range of applications and high work efficiency. The host can be installed indoors or outdoors.
(2) Working blade length: 1200mm-1500mm, shearing force from 100 tons to 250 tons. Applicable to different scales and different requirements for users to choose.
(3) No foot screws are required for installation, and a diesel engine can be used as power in areas without power supply.
(4) The number of shearing times directly exceeds that of ordinary metal shearing machines. The number of shearing times per minute of the 1000 mm heavy-duty scrap metal shearing machine reaches 10-12 times, which greatly improves production efficiency.
(5) The large oil tank brings back the oil heat dissipation function, which greatly reduces the temperature of the operating hydraulic oil and extends the service life of the oil pump and other hydraulic accessories.
(6) There are three operating modes: fully automatic shearing, semi-automatic shearing, and inching shearing.

4_10
