Stainless Sheet Bending Machine Video：

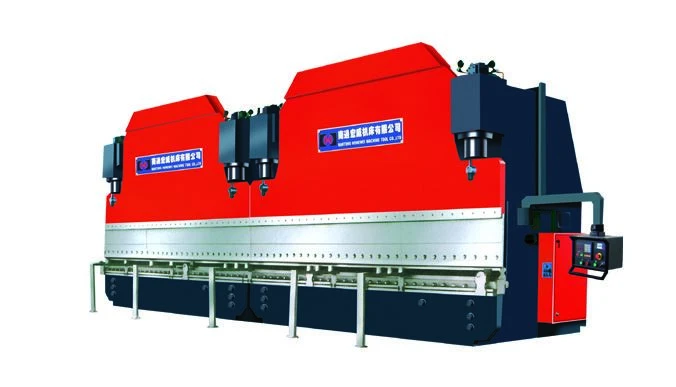

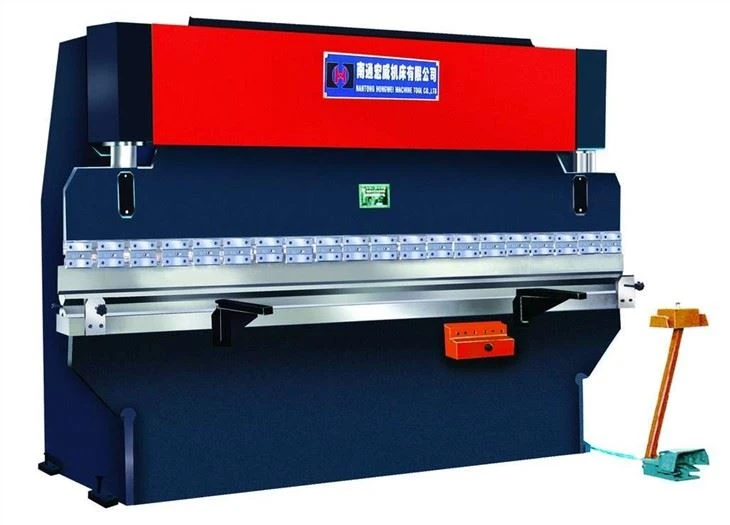

Stainless Sheet Bending Machine：

Main Features

1.Main body manufacturing by the CNC flooring and boring machine .

2.Technical utilize parametric 3D SolidWorks analysis.

3. Electronic- hydraulic proportional servos are synchronized and capable of the control of random point within the stroke ,with an accuracy of reception of ±0.01 mm and parallelism of 0.02mm .

4. The lower worktable adopts deflection compensation (refer to the following figure ) and the upper die is equipped with deflection compensation mechanism ;the lower worktable is provided with imported manually and electrically-driven protruding device and the worktable with an operating pressure of 250t or above is provide with lower die compensation device.

5.The computer system of Holland Delem ( switerland Cybelec ,Italy Esa for optional choice ) hydraulic valves part , pump , servo motor ,grating ruler are originally imported .

6.The stroke of cylinder ( Y1,Y2) and back guage (X,Y,Z )are computer controlled .The back guage adopt ball screw and rolling guideway ,ensuring a high accuracy of repetition .

7.Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.

8.Customrized ten axis ,manipulator ,plate flexible processing center .etc

specification
