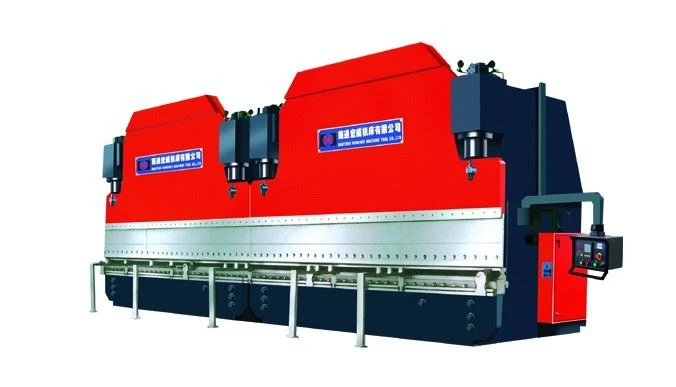

Hydraulic press brake is a steel sheet bending machine, it is composed by supporting frame, worktable and pressing board. The mainframe is processed by annealing art, long time using, there is no shape changing, keep high bending precision. Bending die is processed by special art.

Main Features:

1.Machine frame processing: A large floor boring and milling machine is used for overall processing of the bending machine frame.

2.Forced synchronization of mechanical torsion shaft: Forged material shaft body, with high rigidity and good elasticity, with fine adjustment device, weak anti-eccentric load.

3.Double servo control: Double servos each independently control Y1Y2 cylinders. The system automatically detects and corrects the position difference of Y1Y2 to achieve synchronization accuracy equivalent to electric-hydraulic servo.

4.Professional CNC system: Adopt professional CNC system: large touch screen, color display.

5.Electrical deflection compensation: Input the plate thickness and length parameters in the digital system, and the system will automatically perform deflection compensation.

6.High-precision back gauge structure: adopts ball screw and linear guide, driven by a servo motor, the back gauge is positioned quickly and accurately.

7.The height of the finger can be adjusted manually: the height of the finger is designed by the overall adjustment, and the height of the finger can be manually adjusted.

8.Press-in mold quick clamping structure: increase the speed of mold replacement and improve work efficiency.

specification
