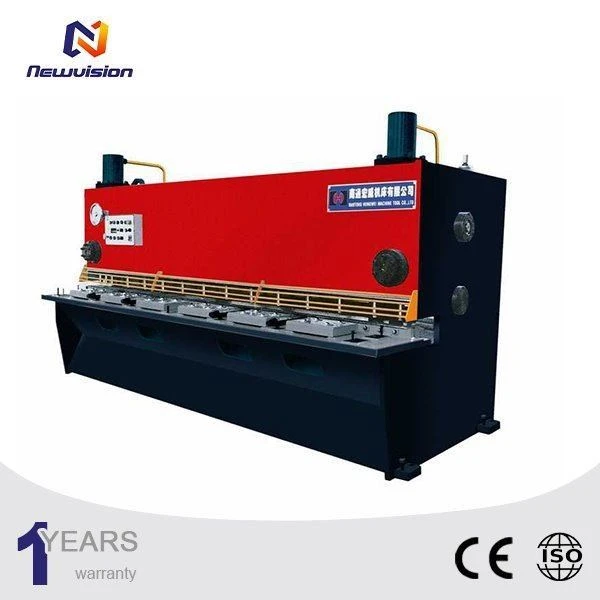

Product Description

The 90° feed is guaranteed by the left side stop. The front finger guard is equipped with large viewing windows and thus enables safe and precise working

For cuts on outline, the cutting line illumination is used for assistance, or the laser line (option).

For cuts with the use of the motorized backgauge, controlled by the CNC CYBELEC "Cybtouch 8W", the "Return to Sender" mode can also be used.

The positioning accuracy of the stop in the interaction of the CNC control, ball screws and frequency controlled electric motor is guaranteed with 0.1 mm.

When changing the sheet thickness and/or material quality, the cutting gap between the two knives is adjusted manually in the standard version, and as an option motor-driven (via the CNC control).

Sheet metal holding devices are available as an option.

Technical parameter of hydraulic guillotine shear
